What frequency ranges does LabiFix RF Shield Boxes support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsRF Shielded Chambers

RF Shielded Chambers

Discover LabiFix's RF shielded chambers and rooms: advanced, large-scale RF shielded enclosures designed for high-precision over-the-air (OTA) testing, antenna pattern measurement,...

RF Shielded Chambers

Discover LabiFix's RF shielded chambers and rooms: advanced, large-scale RF shielded enclosures designed for high-precision over-the-air (OTA) testing, antenna pattern measurement, MIMO validation, and full radiated performance evaluation of wireless devices. Built with premium welded construction and lined with high-performance pyramidal RF absorbers, these chambers deliver ultra-low reflection environments, simulating free-space conditions while providing superior EMI/EMC isolation (>90–100 dB typical across wide frequency ranges).

Ideal for engineers requiring standards-compliant testing in R&D, pre-certification (CTIA, 3GPP, Wi-Fi Alliance), carrier acceptance, and production environments, LabiFix anechoic chambers support accurate measurement of TRP/TIS, EIRP, beamforming, and radiated throughput for larger DUTs such as base stations, access points, automotive radar modules, and mmWave systems.

Each chamber is fully customizable with modular absorber configurations, turntables/positioners, filtered I/O interfaces (multi-gig Ethernet, fiber optics, waveguides, RF feeds), lighting, and access doors. These solutions excel in anechoic testing for 5G NR (sub-6 and mmWave), Wi-Fi 6E/7, WLAN massive MIMO, satellite communications, and radar applications.

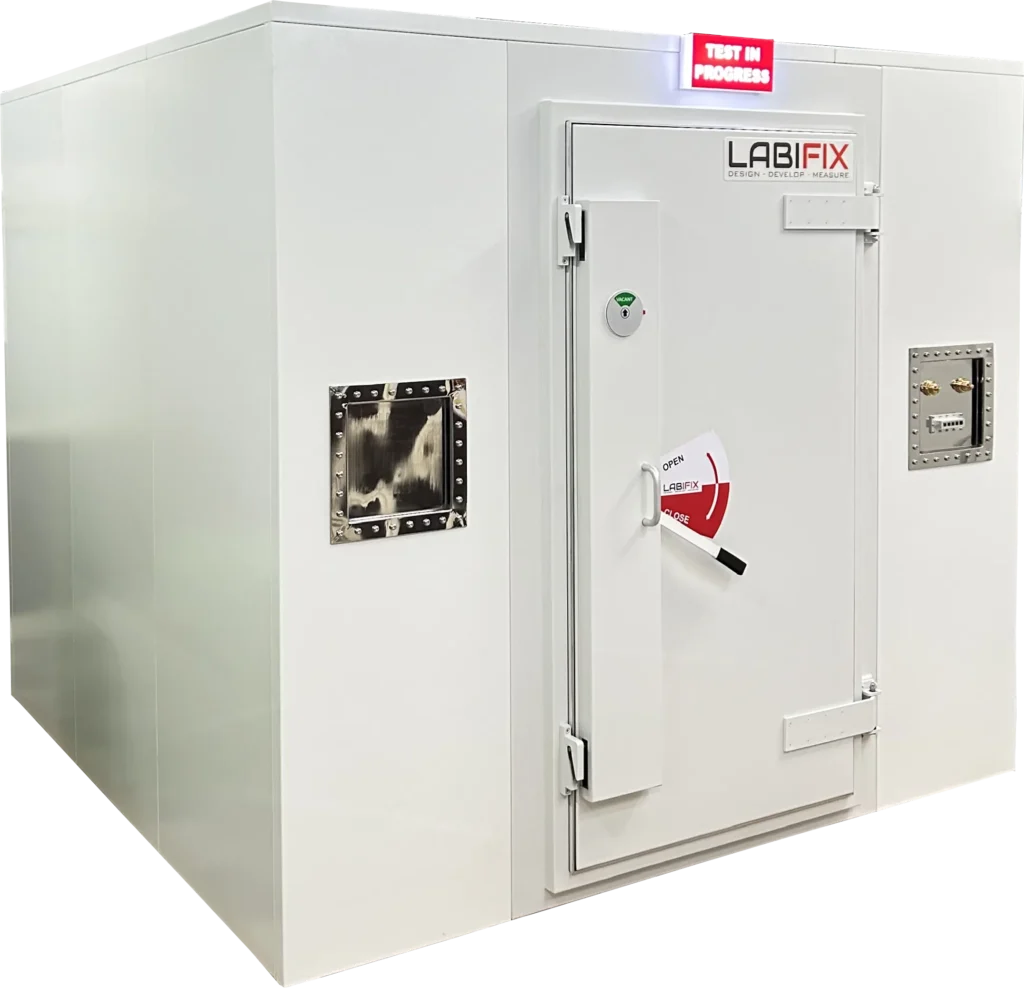

RF Shielded Chambers - LabiFix RF Test Solution

Anechoic Chamber Test Facility

Common Engineering Features & Standards

All LabiFix anechoic RF shielded chambers and rooms feature:

Premium pyramidal or hybrid RF absorber lining for quiet zones with reflection loss > 30–50 dB

High shielding effectiveness (> 90–100+ dB) combined with welded steel construction for leak-free performance

Large interior test volumes accommodating automated turntables, antenna masts, and multi-axis positioners

Configurable filtered penetrations including RF waveguides, optical fiber, and high-power filtered AC/DC lines

Compliance-ready for CTIA OTA, 3GPP radiated 5G NR, and EMC radiated immunity standards

Schedule a complimentary consultation or request a customized RF simulation model for your testing facility!

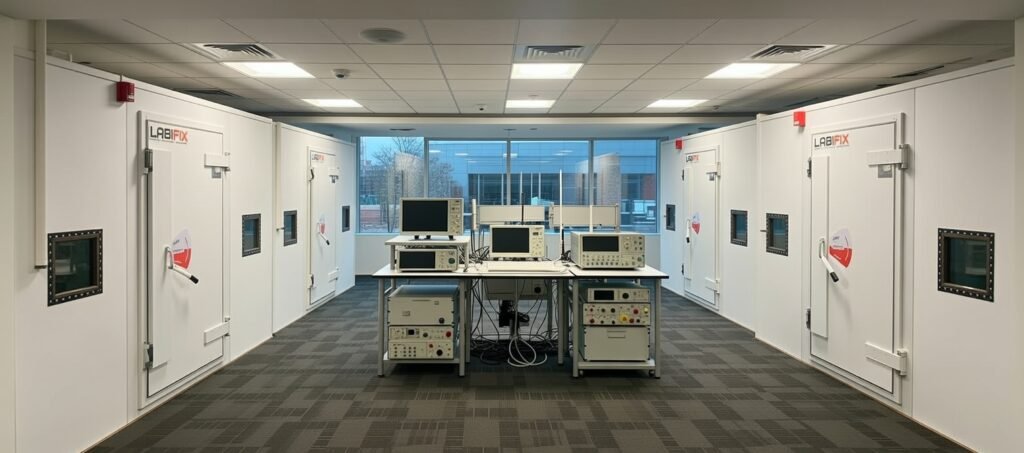

LabiFix Anechoic Shielded Chamber Facility

Customized RF Shielding Chambers & Anechoic Rooms

Tailored Engineering

Custom dimensions, quiet zones, multi-axis positioners, and penetration panels engineered to test specifications.

Certified Shielding

High shielding effectiveness (> 90–100+ dB) certified for MIL-STD, CTIA OTA, and 3GPP radiated conformance.

RF Shielded Chambers

RF Shielded Chambers

Common Engineering Features & Standards

Customized RF Shielding Chambers & Anechoic Rooms

Tailored Engineering

Certified Shielding

Schedule a complimentary consultation to explore our product features and RF shielding solutions.
